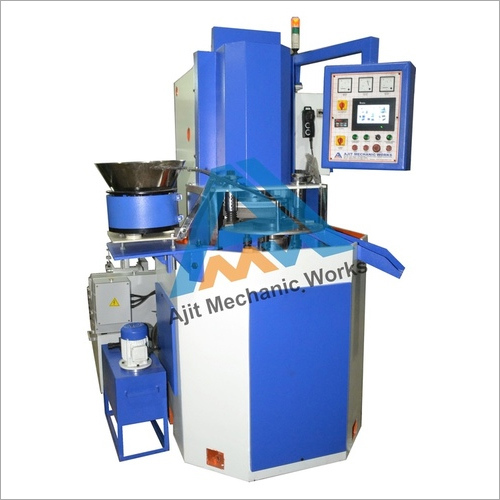

Vertical-Double-Disc Grinding Machine

Vertical-Double-Disc Grinding Machine
Vertical-Double-Disc Grinding Machine
Send Inquiry
Product Code : DD-DSG-V
Brand Name : AMW
Price And Quantity
  • Minimum Order Quantity
  • 1 Piece
  • Price
  • 12 Lakh INR
Product Description

Vertical Double Disc Grinding Machine finds its application in automobile, bearing manufacturing, and metal processing industries. It is highly appreciated for assuring fast processing speed with better human machine interface. This is a CNC type operated system which has user friendly nature and is easy to maintain. It is equipped with a precision ball screw which assures accurate positioning of grind wheel with zero backlash. Vertical Double Disc Grinding Machine also comprises sleeve & belt transmission so as to prevent deflection of spindle while in operation.

Technical Specification

Specification

Model: AMW DS/VG 300

Model: AMW DG/VG 350

Model: AMW DG/VG 500

Maximum Job Diameter

5 to 75 MM

5 to 100 MM

25 to 150 MM

Maximum Job Width

40 MM

50 MM

60 MM

Power Require(Approx)

12.5 HP

17.5 HP

22.5 HP

Approx. Weight

2700 KG

3500 KG

5000 KG

Grinding Wheel Size

300 x 40 x 25

350 x 50 x 25

500 x 65 x 25
